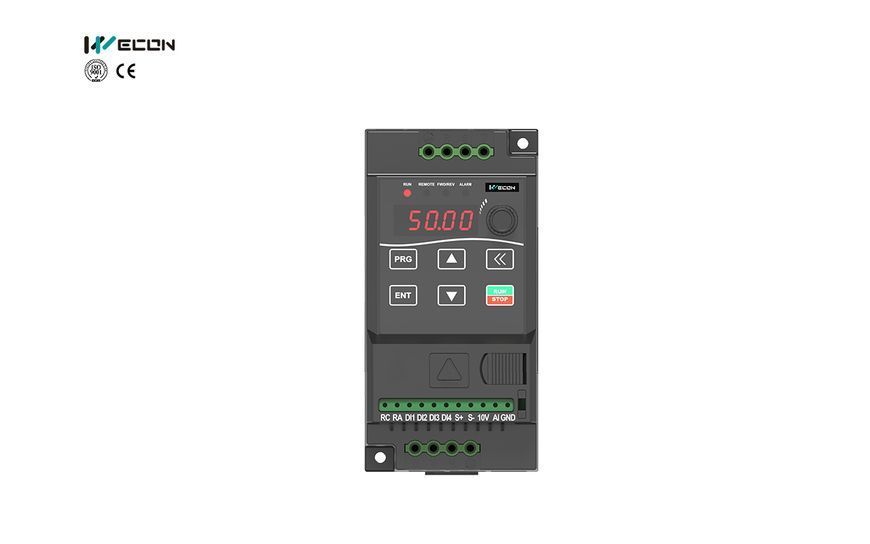

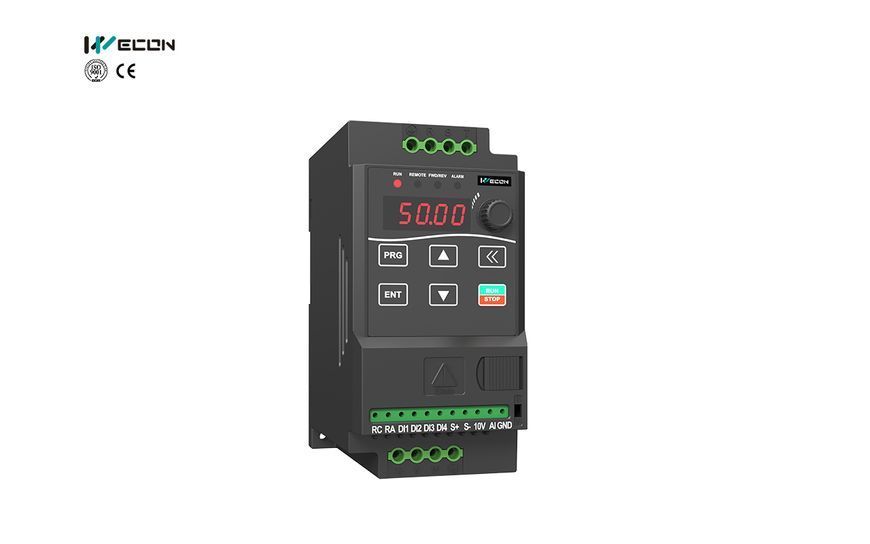

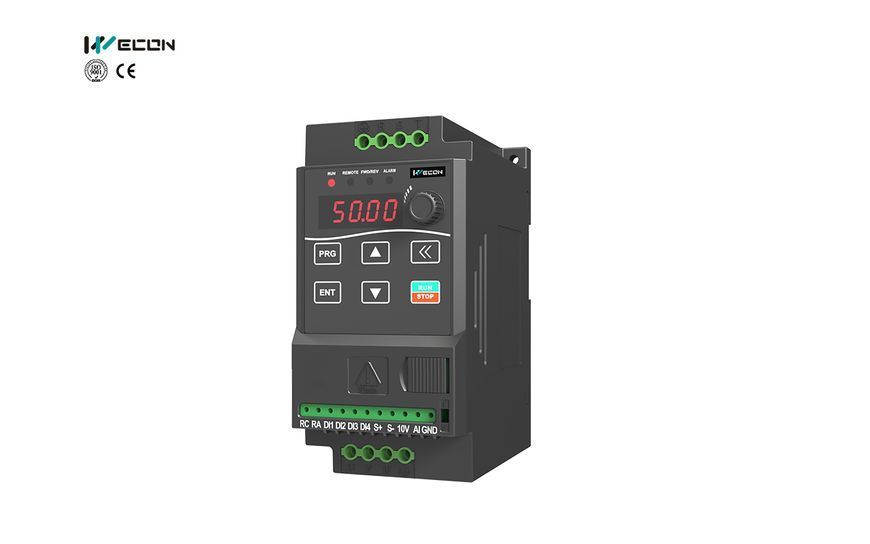

WECON VM-2S1R5 variable frequency drive, 1.5 kW

SKU VM-2S1R5

Price on request

Consultation

Inverter series	VM
Rated power, kW	1.5 kW
Rated power, hp	2 hp
Rated input current, A	14 A
Rated output current, A	7 A
Input voltage	220 V
Number of phases	1 phase
Motor power code	1R5
Control mode	V/F control
Starting torque	0.5 Hz / 100%
Speed control range	1:50
Speed holding accuracy	±1%
Carrier frequency	1–6 kHz
Overload capacity	G version: 150% of rated current for 60 s; 180% for 1 s
Torque boost	Manual torque boost: 0.1–30.0%
Input voltage range	220/380 V; permissible deviation: ±15%
Input frequency range	50/60 Hz; permissible deviation: ±5%
Output voltage range	0 to input voltage; error less than 5%
Output frequency range	V/F: 0–400 Hz
I/O terminals — digital inputs	4 terminals
I/O terminals — analog inputs	1 terminal
Relay outputs	1 terminal
Analog outputs	1 terminal
Altitude above sea level	Up to 1000 m without derating; above 1000 m, power derating of 1% per 100 m
Humidity	≤95% RH; non-condensing
Vibration	Vibration acceleration below 0.6 g
Storage temperature	−25…+60 °C
Inverter housing material	ABS+PC
Overall dimensions, mm	134 × 69 × 104 (H×W×D)
Weight, kg	0.8
Package dimensions, mm	175 × 112 × 155 (H×W×D)
