  • PLC LX3V-3624MT-A (36 inputs / 24 outputs, transistor)

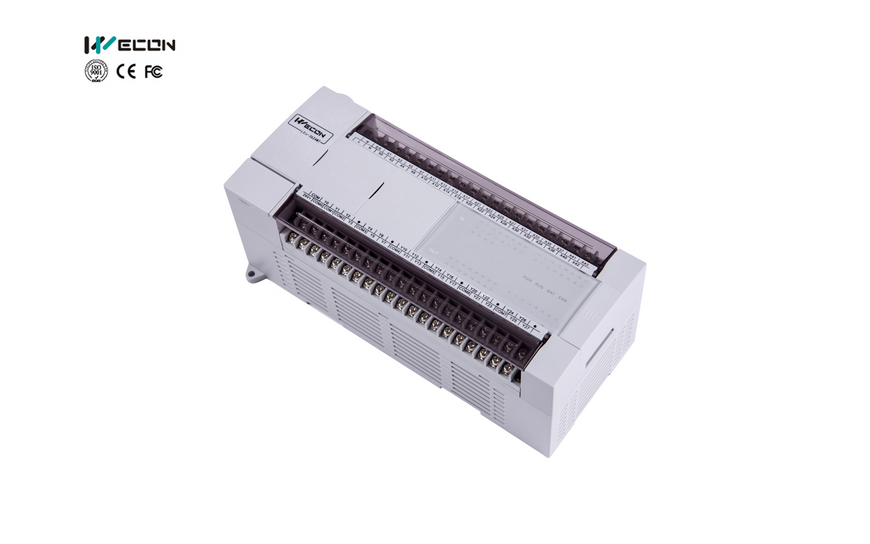

PLC LX3V-3624MT-A (36 inputs / 24 outputs, transistor)

SKU LX3V-3624MT-A
Price on request
Sign in to
add the product to your wishlist
%
Sign in to view the loyalty discount
Request price
Consultation
Specifications
PLC/module series  LX3V
Product type  PLC
I/O configuration  36 inputs / 24 outputs
Output type  Transistor
Power supply  85–265 V AC, 50/60 Hz
High-speed pulse outputs  2
RS485 ports  2
Expansion module support  Supported
BD board support  2
Programming language  Instruction list / ladder diagram (Ladder)
Relative humidity  5…85% RH (non-condensing)
Instruction execution time  Basic instructions: 0.06 µs / application instructions: 1…10 µs
Response time  <10 ms / <0.2 ms (pulse output terminal: <5 µs)
Operating / storage temperature  Operating temperature: 0…55 °C / storage temperature: −20…70 °C
