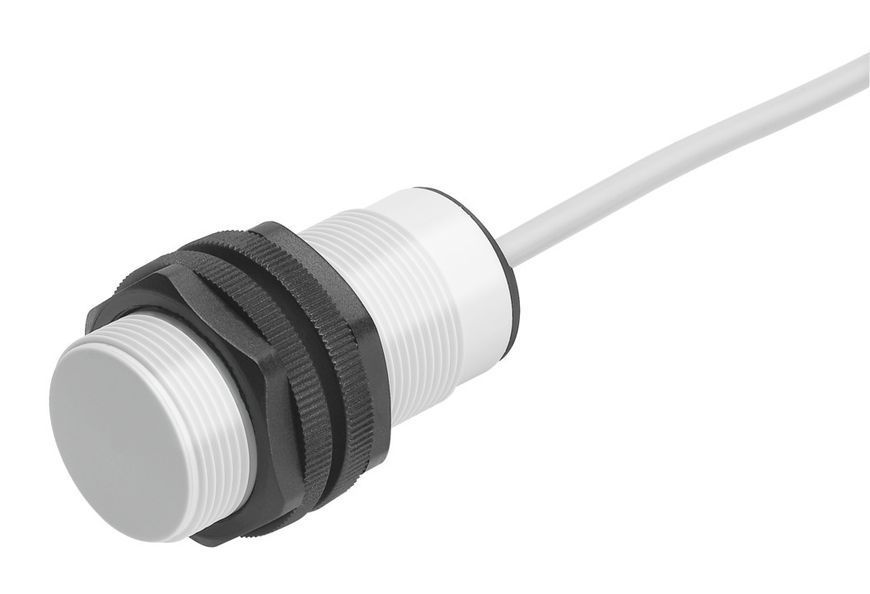

Inductive sensor SIEN-M30NB-PS-K-L-PA

Switching output

PNP

Switching element function

N/O (normally open contact)

Sensing zone design

Non-flush

SKU

538333

55$

In stock

Quick order

Consultation

Brand	FESTO
Warranty period, months	12
Connection	M30
Sensing zone design	Non-flush
Electrical connection 1, connection type	Cable
Complies with standard	EN60947-5-2
Symbol	991702
Resolution	RCM marking c UL us - Listed (OL)
CE marking (see declaration of conformity)	According to the EU EMC Directive According to the EU Low Voltage Directive According to the EU RoHS Directive
UKCA marking (see declaration of conformity)	According to UK EMC requirements According to UK RoHS regulations According to UK electrical equipment regulations
Nominal switching distance (Sn)	15 mm
Guaranteed switching distance	12.15 mm
Reduction factors	Aluminium = 0,35 - 0,5 Stainless steel St 18/8 = 0,6 - 1,0 Copper = 0,25 - 0,45 Brass = 0,35 - 0,5 Steel St 37 = 1,0
Ambient temperature	-25 °C ... 70 °C
Repeatability	0.3 mm
Switching output	PNP
Switching element function	N/O (normally open contact)
Hysteresis	0.45 mm... 2.25 mm
Maximum output current	200 mA
Voltage drop	≤1.8 V
Short-circuit protection	Synchronization
DC operating voltage range	10 V ... 30 V
Residual ripple	10 %
No-load current	≤15 mA
Reverse polarity protection	For all electrical connections
Electrical connection 1, connection technology	Open end
Electrical connection 1, number of contacts/cores	3
Cable length	2.5 m
Cable sheath material	PVC
Size	M30x1,5
Mounting type	With locknut
Tightening torque	5 N·m
Installation type	Non-flush
Product weight	158 g
Housing material	PA reinforced
Switching status indication	Yellow LED
Ambient temperature with moving cable	0 °C ... 70 °C
Degree of protection	IP65 IP67
LABS conformity	VDMA 24364, Zone III
Select additional sensor information	With standard switching distance
Electrical output	PNP
Select sensor version	Polyamide housing
Corrosion resistance class (CRC)	4 — very high corrosion resistance
Maximum DC switching frequency	500 Hz
Measurement principles	Inductive
Electrical connection	Cable
Insulating sleeve material	PVC
GTIN	4052568089306
