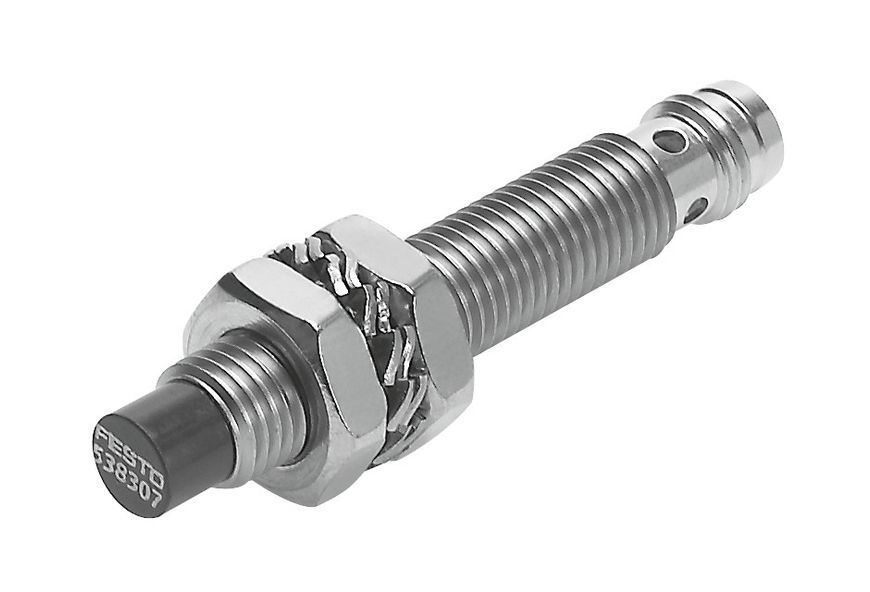

Inductive sensor SIEF-M8NB-PS-S-L
SKU
538307
In stock
Specifications
| Brand | FESTO |
|---|---|
| Warranty period, months | 12 |
| Connection | M8 |
| Sensing zone design | Non-flush |
| Electrical connection 1, connection type | Connector |
| Complies with standard | EN60947-5-2 |
| Symbol | 991701 |
| Resolution | RCM marking c UL us - Listed (OL) |
| CE marking (see declaration of conformity) |
According to the EU EMC Directive According to the EU Low Voltage Directive According to the EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
According to UK EMC requirements According to UK RoHS regulations According to UK electrical equipment regulations |
| Nominal switching distance (Sn) | 4 mm |
| Guaranteed switching distance | 3.24 mm |
| Reduction factors | Aluminium = 1,0 Stainless steel St 18/8 = 1,0 Copper = 1,0 Brass = 1,0 Steel St 37 = 1,0 |
| Ambient temperature | -30 °C ... 85 °C |
| Repeatability | 0.08 mm |
| Switching output | PNP |
| Switching element function | N/O (normally open contact) |
| Hysteresis | 0.12 mm... 0.6 mm |
| Maximum output current | 150 mA |
| Voltage drop | ≤1.8 V |
| Short-circuit protection | Synchronization |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 10 % |
| No-load current | ≤15 mA |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection technology | M8x1, A-coded according to EN 61076-2-104 |
| Electrical connection 1, number of contacts/cores | 3 |
| Size | M8x1 |
| Mounting type | With locknut |
| Tightening torque | 10 N·m |
| Installation type | Non-flush |
| Product weight | 19 g |
| Housing material | High-alloy stainless steel |
| Switching status indication | Yellow LED |
| Degree of protection | IP67 |
| LABS conformity | VDMA 24364, Zone III |
| Select additional sensor information | Reduction factor 1; resistant to magnetic fields |
| Electrical output | PNP |
| Select sensor version | Standard |
| Corrosion resistance class (CRC) | 4 — very high corrosion resistance |
| Maximum DC switching frequency | 2000 Hz |
| Measurement principles | Inductive |
| Electrical connection | M8x1 connector |
| Magnetic field resistance | DC and AC magnetic field |
| Electrical connection 1, mounting type | Latch; screw locking; non-rotatable |
| Electrical connection 1, universal mounting type | Compatible with latch locking and rotatable screw locking |
|
GTIN
|
4052568089108 |
| Product series | SIEF |
